Cambion Connector Pins Through Board

Cambion Connector Pins Through Board

Kategorien Connector Pins (Kontaktstifte)

Beschreibung

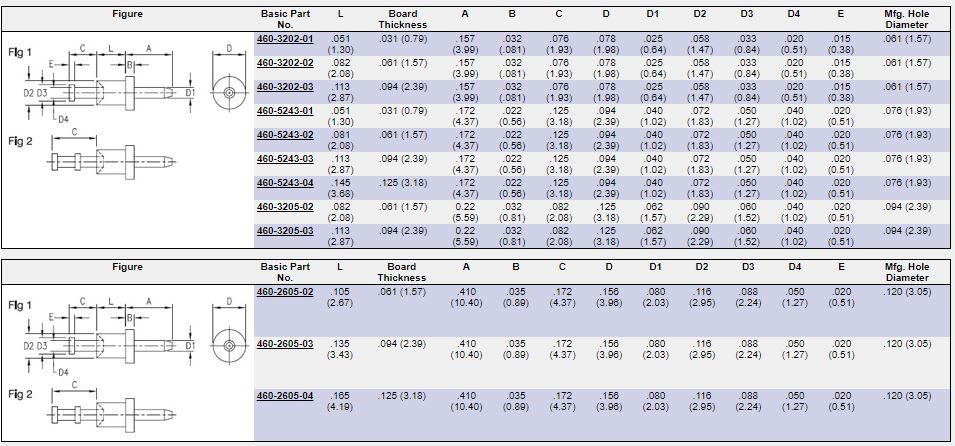

  • Connection pins / contact pins with 0.64mm / 1.02mm / 1.57mm / 2.03mm diameter
  • For circuit boards with 0.79mm / 2.39mm / 3.18mm thickness
  • For mounting holes with 1.57mm / 1.93mm / 2.39mm / 3.05m diameter
  • RoHS compliant

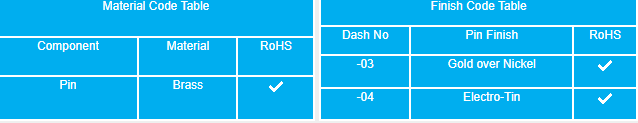

  • Pin material: brass
  • Finish available in gold plated or tin plated finish
  • Connecting pins for rivet assembly
  • Insertion tool available
