Cambion Single Pole Socket Patchcord Crimp Mount
Cambion Single Pole Socket Patchcord Crimp Mount
| Kategorien | PCB Hardware, Single Pole Sockets |
|---|
Beschreibung
- Sockets for crimp connections with connection cable

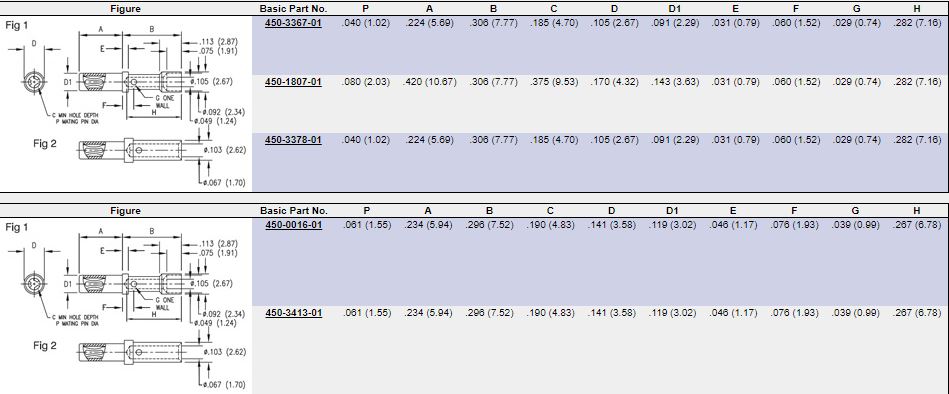

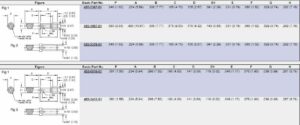

- For contact pins with a diameter of 1.02mm / 1.55mm / 2.03mm
- For circuit boards with 0.79mm / 1.57mm / 2.39mm / 3.18mm / 4.76mm thickness
- RoHS compliant

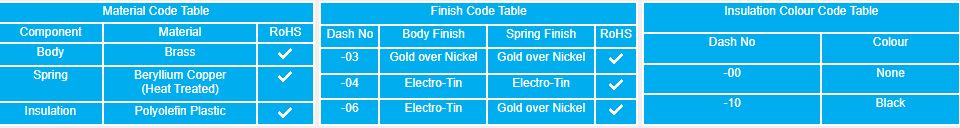

- Brass body
- Copper beryllium spring
- With or without insulation
- Finishes available in Gold Plated, Tin Plated, Gold Plated Inside, and Tin Plated Outside
- Contact socket for crimping
- Crimp tools available
Dokumente & Downloads
