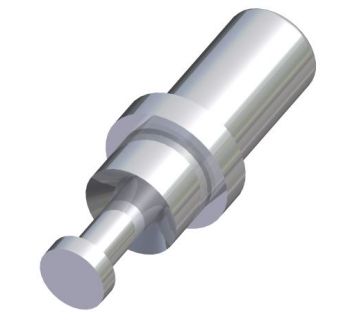

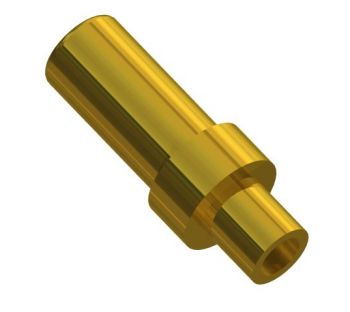

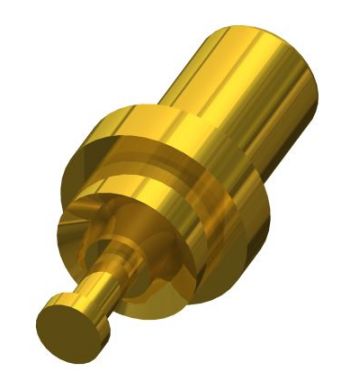

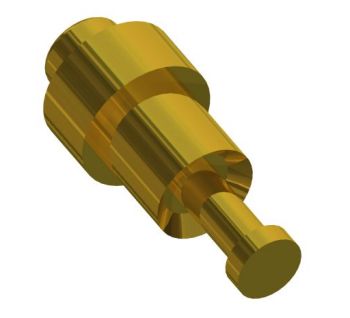

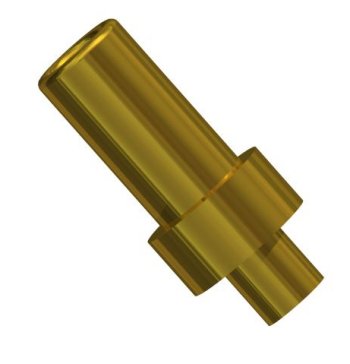

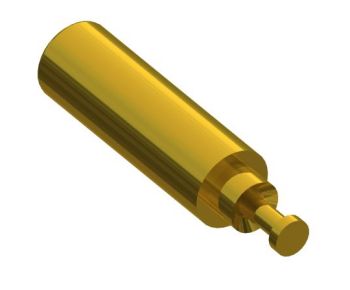

Cambion Single Pole Socket Swage Mount
Cambion Single Pole Socket Swage Mount
| Kategorien | PCB Hardware, Single Pole Sockets |
|---|
Beschreibung
- Rivet bushings
- For contact pins with a diameter of 0.64mm to 2.59mm
- For mounting holes with 1.57mm / 1.70mm / 1.93mm / 2.39mm / 3.66mm diameter
- For circuit boards with 0.79mm / 1.57mm / 2.39mm / 3.18mm / 4.76mm thickness
- RoHS compliant

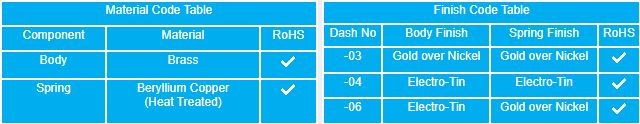

- Brass body
- Copper beryllium spring
- Finishes available in Gold Plated, Tin Plated, Gold Plated Inside, and Tin Plated Outside
- Contact socket for pressing in (rivet socket)
- Press-in tool available

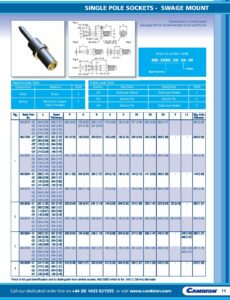

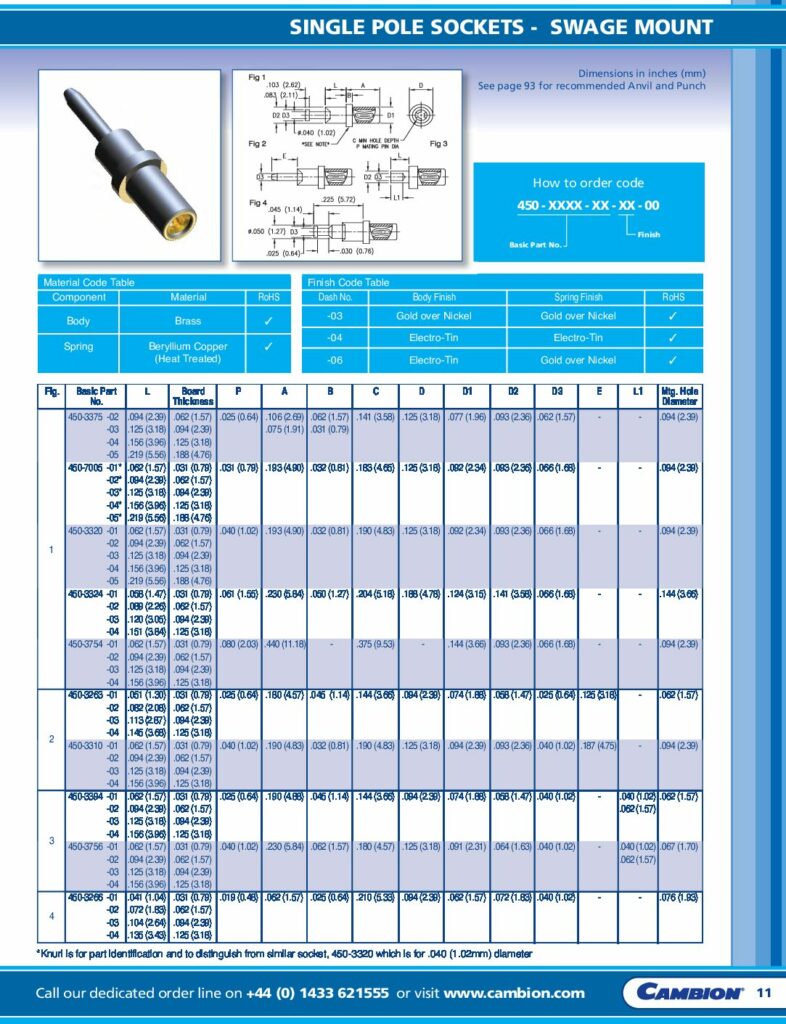

Dokumente & Downloads
