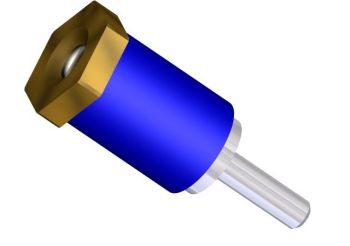

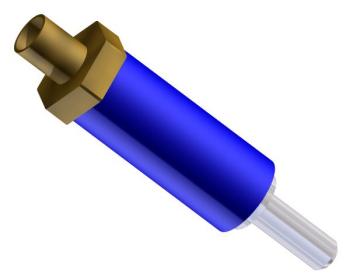

Cambion Solder Terminals Moulded Dap, Pin
Cambion Solder Terminals Moulded Dap, Pin
| Kategorien | PCB Hardware, Solder terminals |
|---|
Beschreibung
- Solder terminals for soldering
- Insulated diallyl solder terminals with hexagonal socket
- Pin connection
- For circuit board thicknesses from 1.57mm to 4.78mm
- Silver-plated or tin-plated surface
- Permissible voltage from 3000 to 6000V rms.
- Insulator in blue
- Matching crimping tools and hand tools available
Dokumente & Downloads
