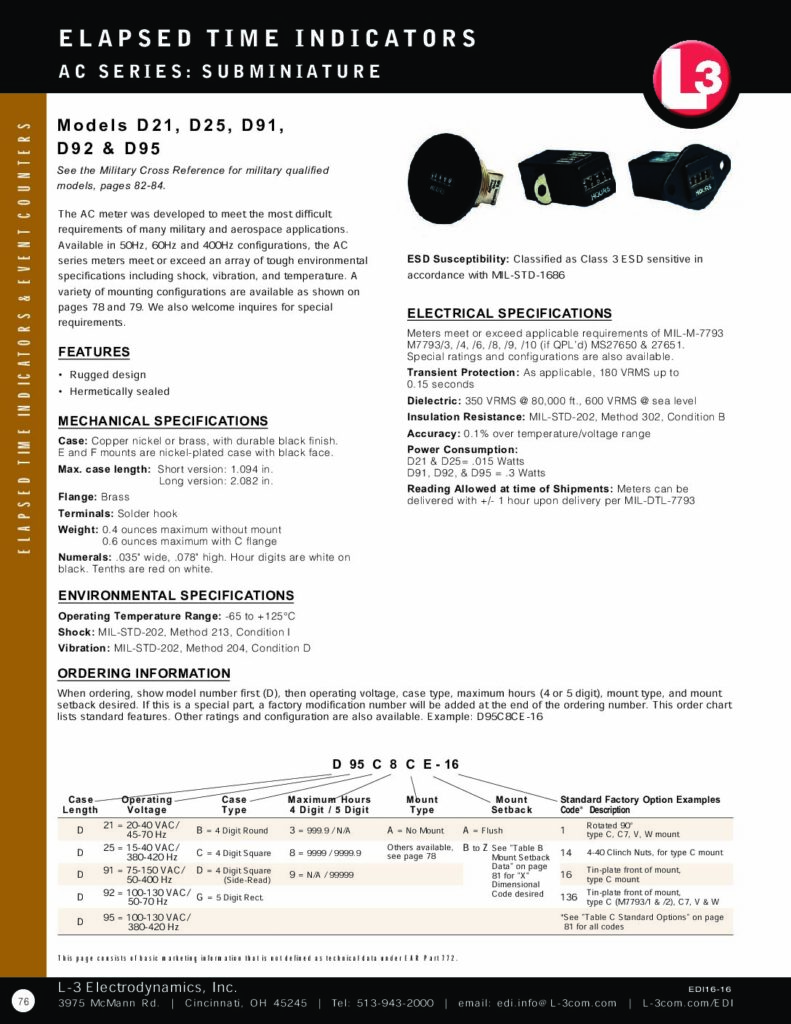

Elapsed Time Indicator AC Series

Beschreibung

• FEATURES
  Rugged design
  Hermetically sealed
• MECHANICAL SPECIFICATIONS
  Case: Copper nickel or brass, with durable black finish.
  E and F mounts are nickel-plated case with black face.
  Max. case length: Short version: 1.094 in.
  Long version: 2.082 in.
  Flange: Brass
  Terminals: Solder hook
  Weight: 0.4 ounces maximum without mount
  0.6 ounces maximum with C flange
  Numerals: .035″ wide, .078″ high. Hour digits are white on
  black. Tenths are red on white.
• ENVIRONMENTAL SPECIFICATIONS
  Operating Temperature Range: -65 to +125°C
  Shock: MIL-STD-202, Method 213, Condition I
  Vibration: MIL-STD-202, Method 204, Condition D
• ELECTRICAL SPECIFICATIONS

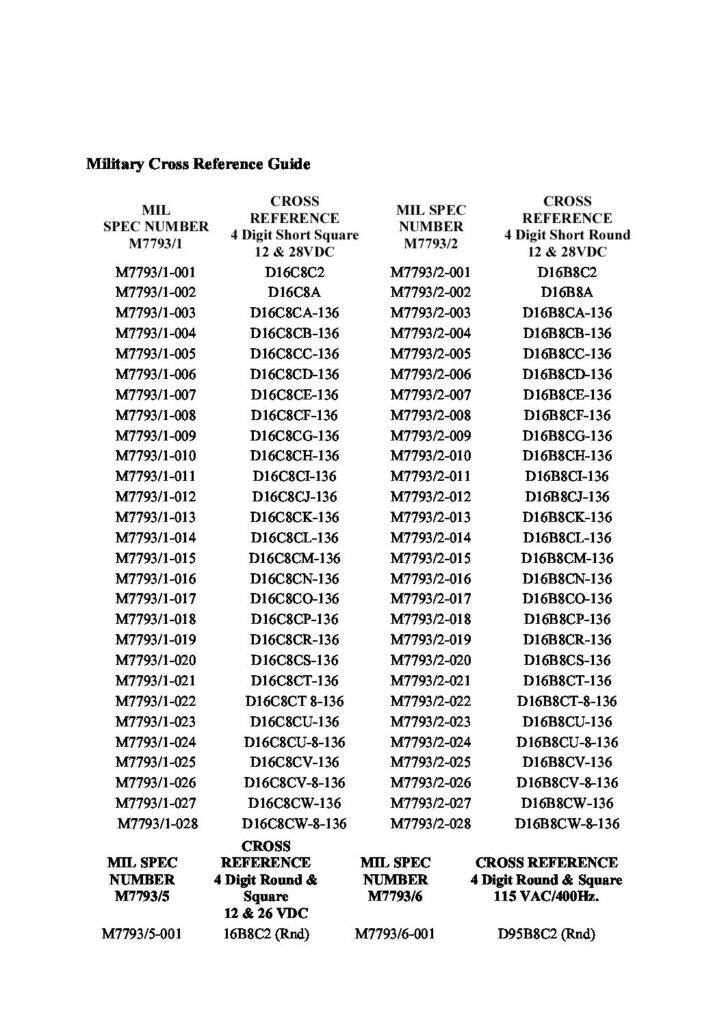

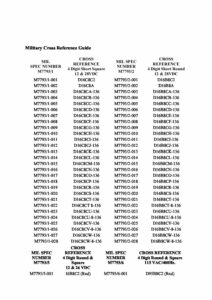

  Meters meet or exceed applicable requirements of MIL-M-7793
  M7793/3, /4, /6, /8, /9, /10 (if QPL’d) MS27650 & 27651.
  Special ratings and configurations are also available.
  Transient Protection: As applicable, 180 VRMS up to
  0.15 seconds
  Dielectric: 350 VRMS @ 80,000 ft., 600 VRMS @ sea level
  Insulation Resistance: MIL-STD-202, Method 302, Condition B
  Accuracy: 0.1% over temperature/voltage range
• Power Consumption:
  D21 & D25= .015 Watts
  D91, D92, & D95 = .3 Watts
  Reading Allowed at time of Shipments: Meters can be
  delivered with +/- 1 hour upon delivery per MIL-DTL-7793
