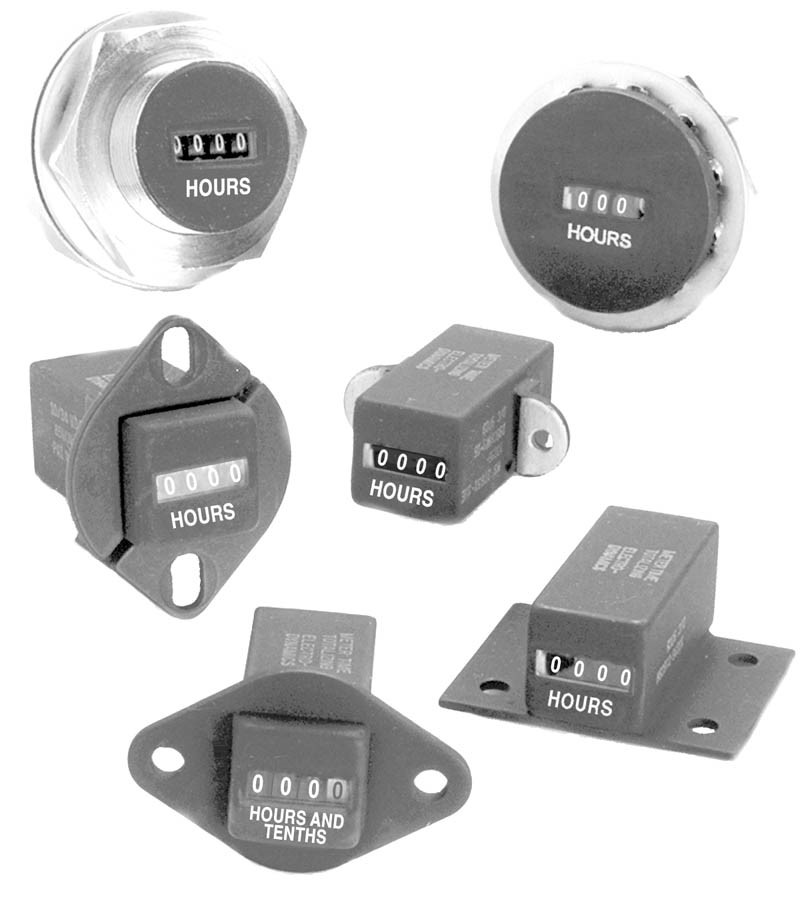

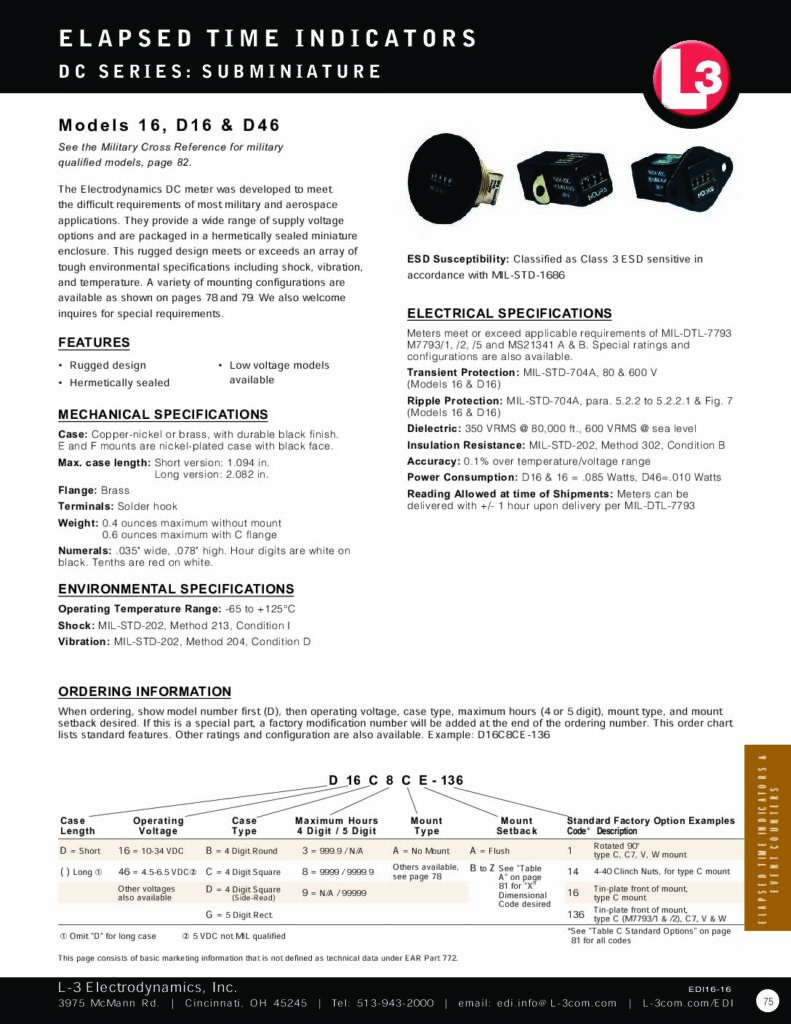

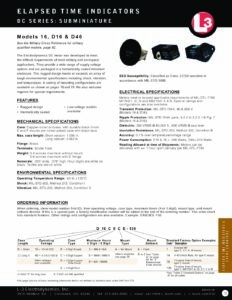

ELAPSED TIME INDICATORS DC SERIES : SUBMINIATURE

Beschreibung

• FEATURES
  Rugged design
  Hermetically sealed
  Low voltage models available
• MECHANICAL SPECIFICATIONS
  Case: Copper-nickel or brass, with durable black finish.
  E and F mounts are nickel-plated case with black face.
  Max. case length: Short version: 1.094 in.
  Long version: 2.082 in.
  Flange: Brass
  Terminals: Solder hook
  Weight: 0.4 ounces maximum without mount
  0.6 ounces maximum with C flange
  Numerals: .035″ wide, .078″ high. Hour digits are white on
  black. Tenths are red on white.
• ENVIRONMENTAL SPECIFICATIONS
  Operating Temperature Range: -65 to +125°C
  Shock: MIL-STD-202, Method 213, Condition I
  Vibration: MIL-STD-202, Method 204, Condition D
• ELECTRICAL SPECIFICATIONS
  Meters meet or exceed applicable requirements of MIL-DTL-7793
  M7793/1, /2, /5 and MS21341 A & B. Special ratings and
  configurations are also available.
  Transient Protection: MIL-STD-704A, 80 & 600 V
  (Models 16 & D16)
  Ripple Protection: MIL-STD-704A, para. 5.2.2 to 5.2.2.1 & Fig. 7
  (Models 16 & D16)
  Dielectric: 350 VRMS @ 80,000 ft., 600 VRMS @ sea level
  Insulation Resistance: MIL-STD-202, Method 302, Condition B
  Accuracy: 0.1% over temperature/voltage range
  Power Consumption: D16 & 16 = .085 Watts, D46=.010 Watts
  Reading Allowed at time of Shipments: Meters can be
  delivered with +/- 1 hour upon delivery per MIL-DTL-7793
