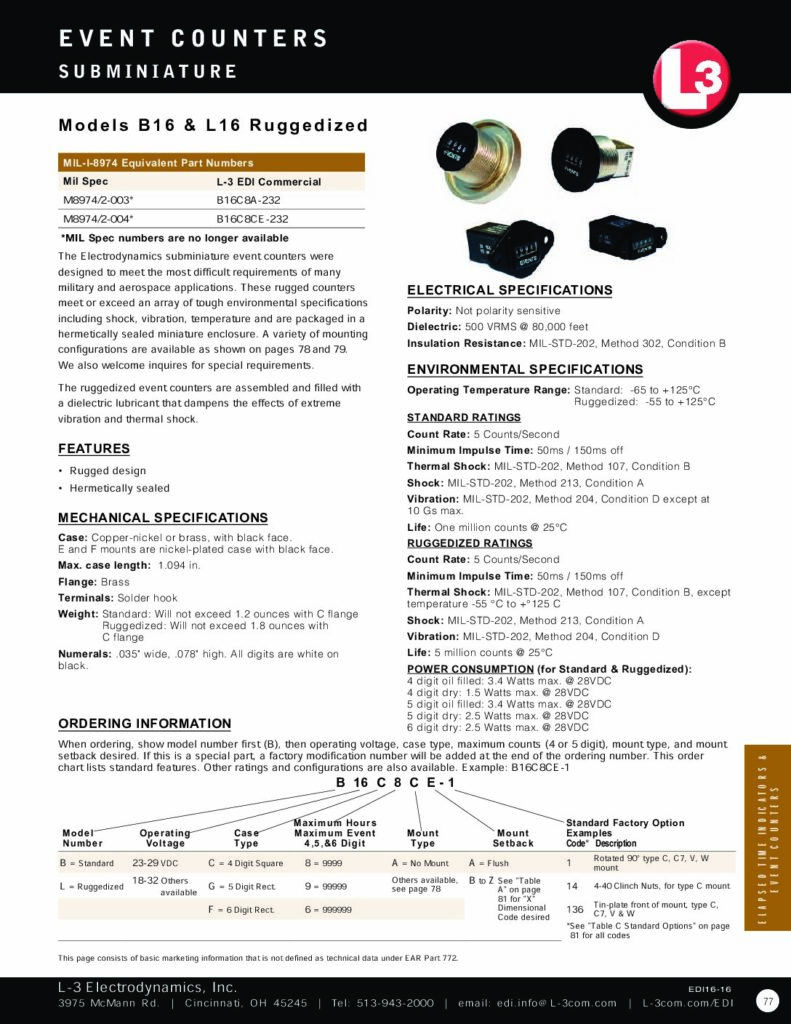

L3Harris Event Counters subminiature

Beschreibung

• Rugged design
• Hermetically sealed
• Case: Copper-nickel or brass, with black face.
  E and F mounts are nickel-plated case with black face.
  Max. case length: 1.094 in.
  Flange: Brass
  Terminals: Solder hook
  Weight: Standard: Will not exceed 1.2 ounces with C flange
  Ruggedized: Will not exceed 1.8 ounces with
  C flange
  Numerals: .035″ wide, .078″ high. All digits are white on
  black.
• ELECTRICAL SPECIFICATIONS
  Polarity: Not polarity sensitive
  Dielectric: 500 VRMS @ 80,000 feet
  Insulation Resistance: MIL-STD-202, Method 302, Condition B
• ENVIRONMENTAL SPECIFICATIONS
  Operating Temperature Range: Standard: -65 to +125°C
  Ruggedized: -55 to +125°C
• STANDARD RATINGS
  Count Rate: 5 Counts/Second
  Minimum Impulse Time: 50ms / 150ms off
  Thermal Shock: MIL-STD-202, Method 107, Condition B
  Shock: MIL-STD-202, Method 213, Condition A
  Vibration: MIL-STD-202, Method 204, Condition D except at
  10 Gs max.
  Life: One million counts @ 25°C
• RUGGEDIZED RATINGS
  Count Rate: 5 Counts/Second
  Minimum Impulse Time: 50ms / 150ms off
  Thermal Shock: MIL-STD-202, Method 107, Condition B, except
  temperature -55 °C to +°125 C
  Shock: MIL-STD-202, Method 213, Condition A
  Vibration: MIL-STD-202, Method 204, Condition D
  Life: 5 million counts @ 25°C
• POWER CONSUMPTION (for Standard & Ruggedized):
  4 digit oil filled: 3.4 Watts max. @ 28VDC
  4 digit dry: 1.5 Watts max. @ 28VDC
  5 digit oil filled: 3.4 Watts max. @ 28VDC
  5 digit dry: 2.5 Watts max. @ 28VDC
  6 digit dry: 2.5 Watts max. @ 28VDC
