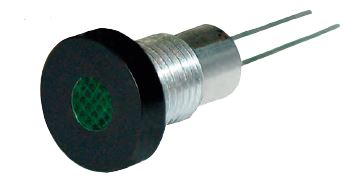

L3Harris ML 2030 Series Solid Front LED Indicator watertight

Beschreibung

• O-ring panel seal
• Dual finish case
• Low power use
• Performs in severe environments
• Rugged construction
• Case: Aluminum, black anodized front bezel with conductive clear chromate body.
• Mounting: Front panel mount with 5/16″-32 nut and lock washer.
• Seal: Environmentally sealed case. MIL-DTL-3661, Para. 4.6.11.1
• O-ring: Fluorosilicone rubber
• Vibration: .06″ D.A. or 20 Gs Peak, whichever is less, 10Hz to 2kHz, MIL STD 202, Method 204, Test Condition D
• Shock: 100 Gs MIL STD 202, Method 213, Test Condition I
• Moisture Resistance (Humidity): MIL STD 202, Method 106
• Barometric Pressure (Reduced): 100,000 ft., MIL STD 202, Method 105, Test Condition D
• Reliability: 3 x 106 hours min. MTBF @ 25°C
• Salt Atmosphere (Corrosion): MIL STD 202, Method 101,
  Test Condition B
