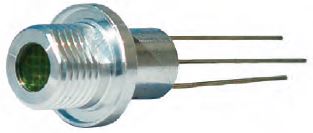

L3Harris ML1638-U LED Indicator NVIS Compatible Bi-Color

Beschreibung

• Designed to meet MIL‑L‑85762A and MILSTD-3009 lighting, aircraft, interior night vision imaging system (NVIS) compatible
• Environmentally sealed
• Panel mount seal
• Colors: red/green
• Compact case design
• Decorative bezel
• Optional EMI screen
• Case: Aluminum, black anodized, standard. Clear chromate case with EMI screen option
• Mounting: Rear‑mount by 5/16″-32 nut and lockwasher
• O‑ring: Fluorosilicone rubber
• Vibration: .06″ D.A. or 20 Gs Peak, whichever is less, 10Hz to 2kHz, MIL STD 202, Method 204, Test Condition D
• Shock: 100 Gs MIL STD 202, Method 213, Test Condition I
• Moisture Resistance (Humidity): MIL STD 202, Method 106
• Barometric Pressure (Reduced): 100,000 ft., MIL STD 202, Method 105, Test Condition D
• Reliability: 3 x 106 hours min. MTBF @ 25°C
• Salt Atmosphere (Corrosion): MIL STD 202, Method 101, Test Condition B
