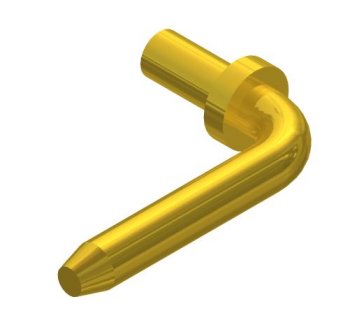

Cambion Connector Pins Swage Mount Right Angle
Cambion Connector Pins Swage Mount Right Angle
| Kategorien | Connector Pins (Kontaktstifte) |
|---|
Beschreibung

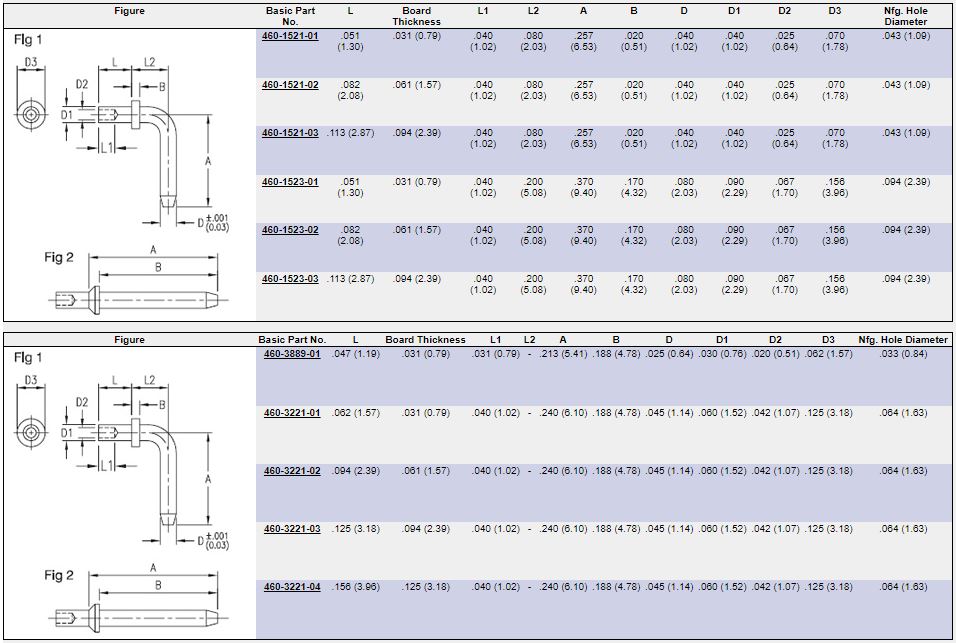

- Connection pins / contact pins with 0.64mm / 1.02mm / 1.14mm / 2.03mm diameter
- For circuit boards with 0.79mm / 1.57mm / 2.39mm / 3.18mm thickness
- For mounting holes with 0.84mm / 1.09mm / 1.63mm / 2.39mm diameter
- RoHS compliant

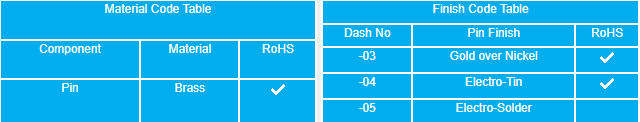

- Pin material: brass
- Finish available in gold plated or tin plated finish
- Connecting pins for rivet assembly, connecting pins 90° angled
- Insertion tool available
