Cambion Single Pole Socket Press Mount
Cambion Single Pole Socket Press Mount
| Kategorien | PCB Hardware, Single Pole Sockets |
|---|
Beschreibung

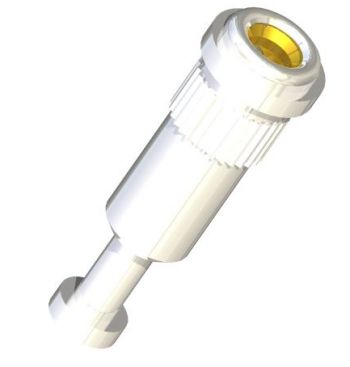

- Contact sockets with or without insulation
- For contact pins with a diameter of 0.64mm to 2.03mm
- For uninsulated mounting holes with 1.4mm / 1.93mm / 2.26mm / 2.53mm / 2.59mm / 2.95mm diameter, insulated 3.45mm / 4.37mm / 5.16mm diameter

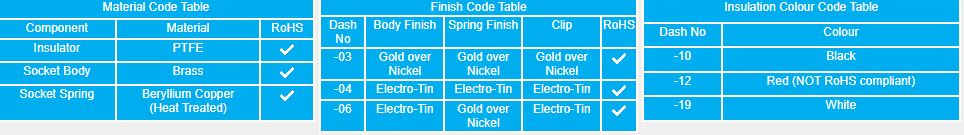

- RoHS compliant except Insulation-12 ( Red PTFE )

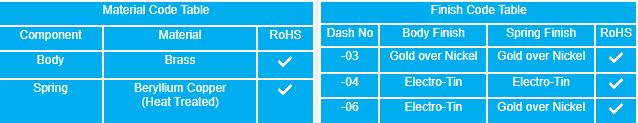

- Brass/copper body
- Copper beryllium spring

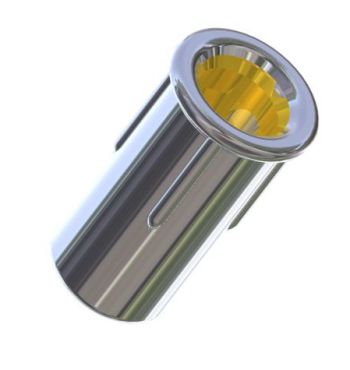

- Finishes available in Gold Plated, Tin Plated, Gold Plated Inside, and Tin Plated Outside

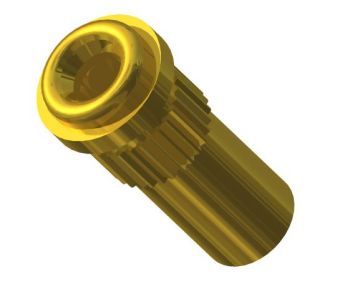

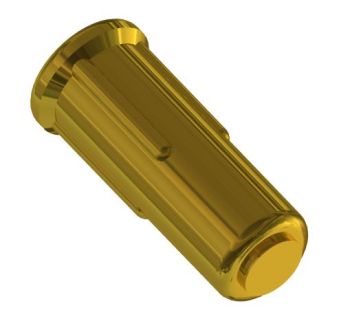

- Contact socket for pressing in (press-in socket)
- Recommended tool for press fitting:
Anvil: 435-6533-01-00-00
Insertion Tool: 435-6651-01-00-00
Dokumente & Downloads

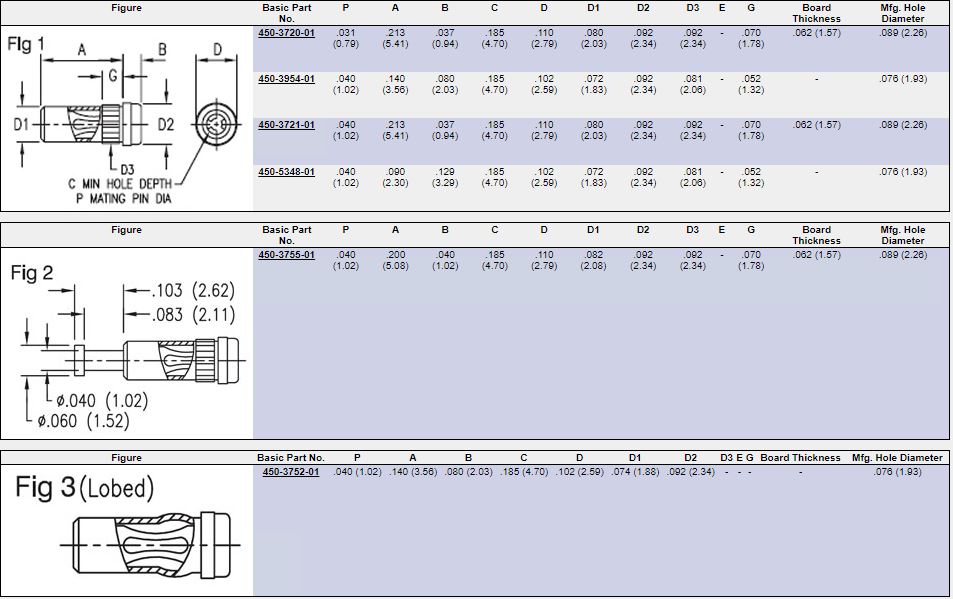

- Data Sheet Cambion - Press Mount Single Pole Sockets
- Data Sheet Cambion - Insulated Press Mount Single Pole Sockets
- Singles Pole Sockets Performance Data
