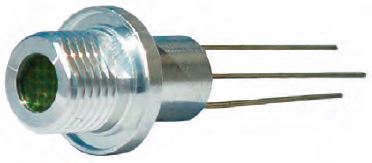

L3Harris ML1635 LED Indicator Rear Mount BI-Color
L3Harris ML1635 LED Indicator Rear Mount BI-Color
| Kategorien | MIL SPEC LEDs |
|---|
Beschreibung
- Multiple status indication within a single package
- Environmentally sealed
- Panel mount seal
- Colors: red/green & yellow/green
- Case: Aluminum, black anodized, standard. Clear chromate case with EMI screen option.
- Compact case design
- EMI screen option
- Decorative bezel
- Mounting: Rear‑mount by 5/16″-32 nut and lockwasher
- O‑ring: Fluorosilicone rubber
- Vibration: .06″ D.A. or 20 Gs Peak, whichever is less, 10Hz to 2kHz, MIL STD 202, Method 204, Test Condition D
- Shock: 100 Gs MIL STD 202, Method 213, Test Condition I
- Moisture Resistance (Humidity): MIL STD 202, Method 106
- Barometric Pressure (Reduced): 100,000 ft., MIL STD 202, Method 105, Test Condition D
- Reliability: 3 x 106 hours min. MTBF @ 25°C
- Salt Atmosphere (Corrosion): MIL STD 202, Method 101, Test Condition B
