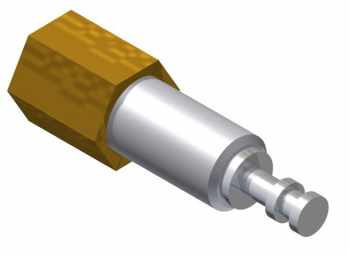

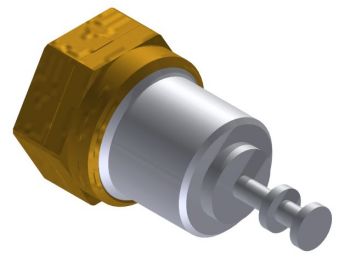

Cambion Solder Terminals PTFE Insulated, Stand Off, Thread Mount
Cambion Solder Terminals PTFE Insulated, Stand Off, Thread Mount
| Categories | PCB Hardware, Solder terminals |
|---|
Description
- Solder posts for screwing in, stand off
- Insulated solder terminals made of PTFE with a hexagon socket
- External thread 6-32 und 4-40
- Silver-plated or tin-plated surface
- Permissible voltage from 3300 to 5000V rms.
- Insulator in white, other colors available on request
