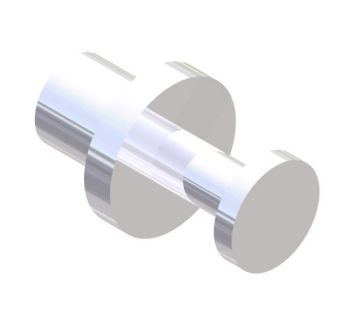

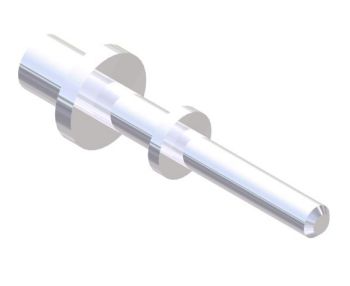

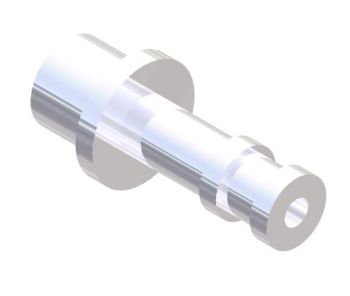

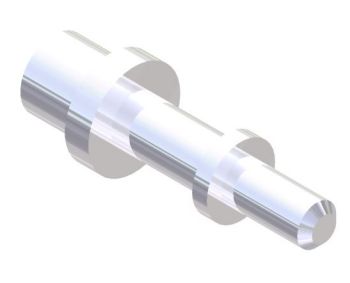

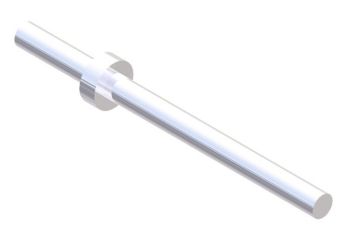

Cambion Solder Terminals Turret
Cambion Solder Terminals Turret
| Kategorien | PCB Hardware, Solder terminals |
|---|
Beschreibung

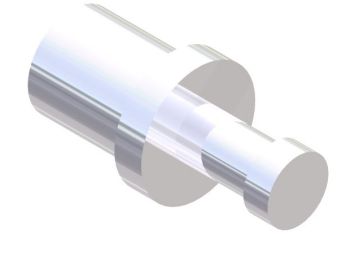

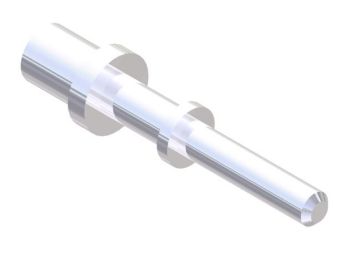

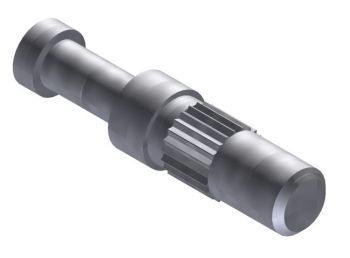

- Solder posts for rivet assembly and for press fitting
- uninsulated

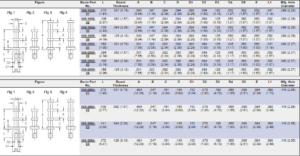

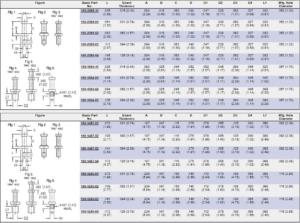

- Mounting Hole Diameter 0.58mm – 1.32mm – 1.63mm – 1.70mm – 1.93mm – 2.08mm – 2.26mm – 2.37mm – 2.95mm – 3.57mm
- Matching crimping tools and hand tools available

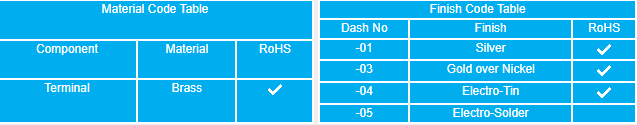

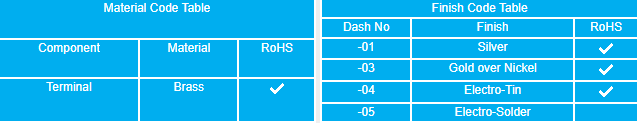

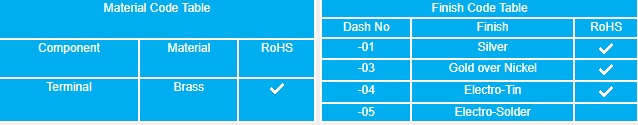

- Material: brass
- Surface tinned or silvered
- For circuit board thicknesses from 0.40mm to 6.35mm
- Turret connection for up to 3 different wires
Dokumente & Downloads

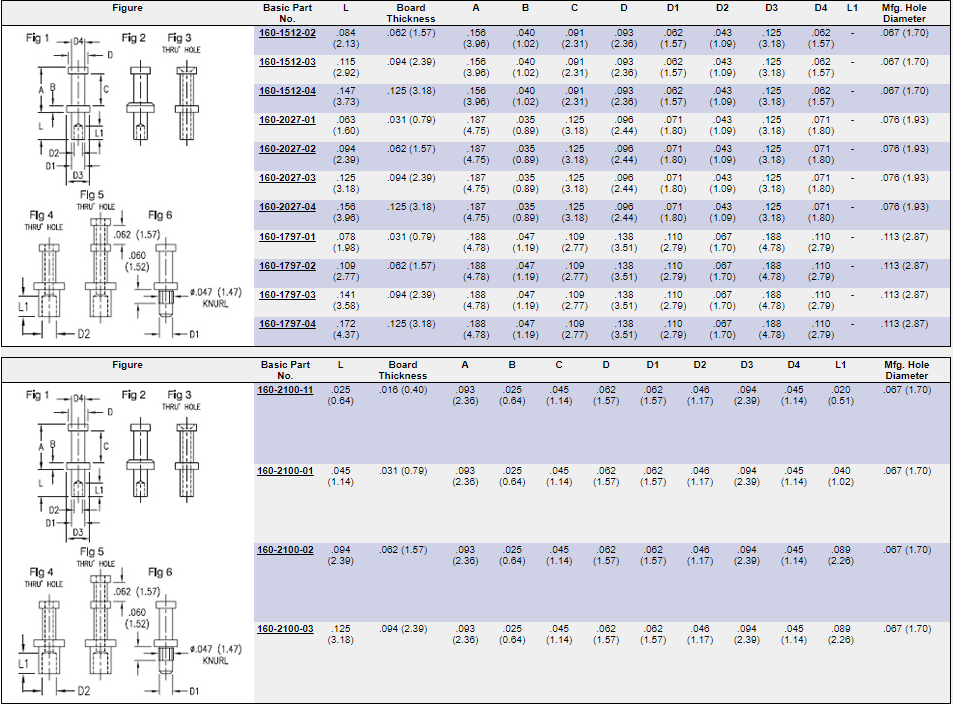

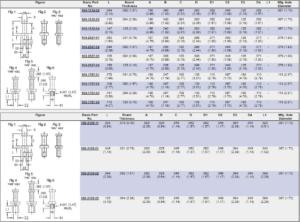

- Data Sheet Cambion - Solder Terminals - Turret 1
- Data Sheet Cambion - Solder Terminals - Turret 2

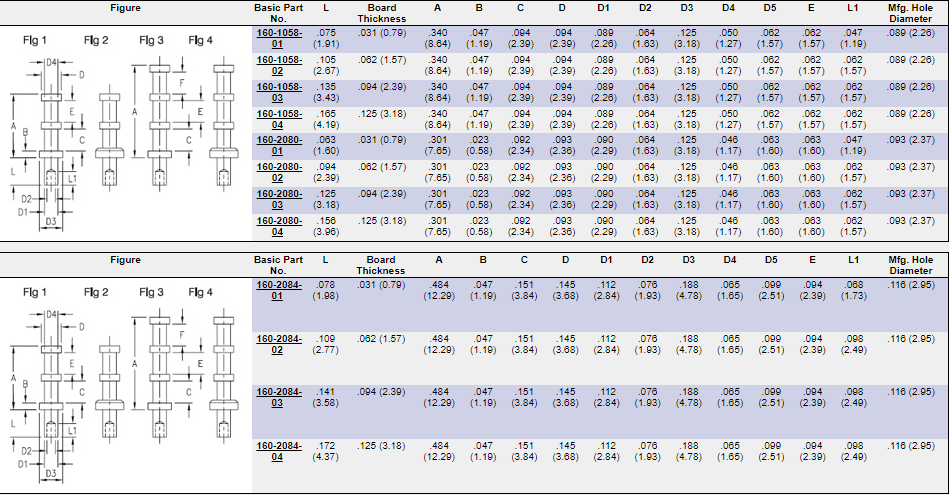

- Data Sheet Cambion - Solder Terminals - Turret 3
- Data Sheet Cambion - Solder Terminals - Turret 4
