Cambion Single Pole Socket Solder Mount
Cambion Single Pole Socket Solder Mount
| Kategorien | PCB Hardware, Single Pole Sockets |
|---|
Beschreibung
- Contact sockets available with closed bottom or with through hole

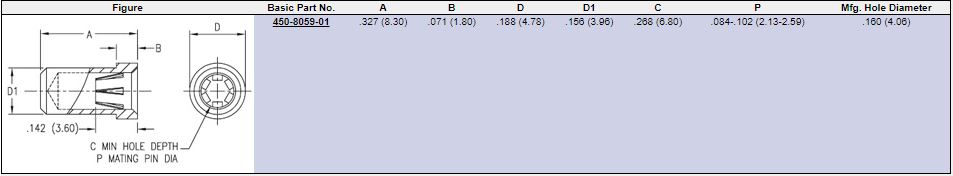

- For contact pins with a diameter of 0.41mm to 2.00mm and 2.13mm to 2.59mm diameter ( 450-8059 )
- For 1.32mm / 1.40mm / 1.57mm / 1.85mm / 1.93mm / 2.26mm / 2.59mm / 3.66mm diameter mounting holes
- RoHS compliant

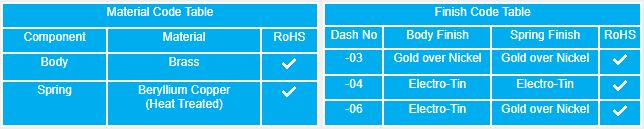

- Brass/copper body
- Copper beryllium spring
- Finishes available in Gold Plated, Tin Plated, Gold Plated Inside, and Tin Plated Outside
- Contact sockets for soldering (solder socket)

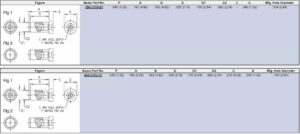

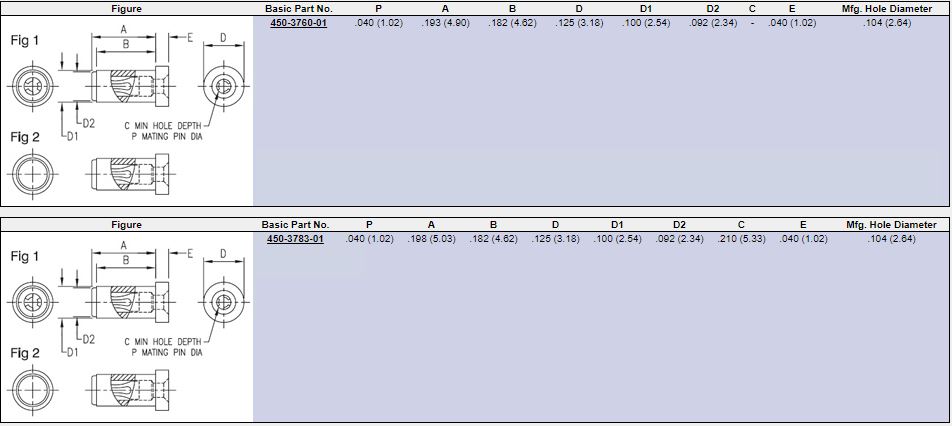

- Option for guided insertion of the contact pins ( Guided Entry ) with solder sockets 450-3760 and 450-3783
Dokumente & Downloads
- Data Sheet Cambion Solder Mount Single Pole Sockets 450-8059 ; Guided Entry
- Cambion Catalogue Page - Solder Mount Single Pole Sockets
- Singles Pole Sockets Performance Data
